Thông số k thuật
Hãng | Gigabyte |
---|---|
CPU hỗ trợ | Intel® Socket 1200 10th Gen Intel® Core™, Pentium®Celeron® Processors |
Bộ nhớ trong | 2x DDR4 memory slots, support up to 64GBIntel® Core™ i7/ i9Supports up to DDR4 2933/2666/2400/2133 MHzIntel® Core™ i5/i3/Pentium/Celeron processorsSupports up to DDR4 2666/2400/2133 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
Hiển thị đồ họa | 1x D-Sub port, supports a maximum resolution of 1920×1200@60 Hz1x DVI-D port, supports a maximum resolution of 1920×1200@60 Hz |
Khe mở rộng | 1x PCIe x16 slot (From CPU)1x PCIe x1 slot (From PCH) |
Thông số kỹ thuật
Hãng | Gigabyte |
---|---|
CPU hỗ trợ | Intel® Socket 1200 10th Gen Intel® Core™, Pentium®Celeron® Processors |
Bộ nhớ trong | 2x DDR4 memory slots, support up to 64GBIntel® Core™ i7/ i9Supports up to DDR4 2933/2666/2400/2133 MHzIntel® Core™ i5/i3/Pentium/Celeron processorsSupports up to DDR4 2666/2400/2133 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
Hiển thị đồ họa | 1x D-Sub port, supports a maximum resolution of 1920×1200@60 Hz1x DVI-D port, supports a maximum resolution of 1920×1200@60 Hz |
Khe mở rộng | 1x PCIe x16 slot (From CPU)1x PCIe x1 slot (From PCH) |
Chuẩn lưu trữ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x 4/x2 SSD support4x SATA 6Gb/s ports |
Mạng | Gigabit Ethernet Chip (1Gbps/100Mbps) |
Âm Thanh | Realtek® Audio Codec2/4/5.1/7.1-Channel High Definition Audio |
CPU hỗ trợ Intel® Socket 1200 10th Gen Intel® Core™, Pentium®Celeron® Processors Supports Intel® 14 nm CPU Chipset H510 Bộ nhớ trong 2x DDR4 memory slots, support up to 64GBIntel® Core™ i7/ i9Supports up to DDR4 2933/2666/2400/2133 MHzIntel® Core™ i5/i3/Pentium/Celeron processorsSupports up to DDR4 2666/2400/2133 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) Hiển thị đồ họa 1x D-Sub port, supports a maximum resolution of 1920x1200@60 Hz1x DVI-D port, supports a maximum resolution of 1920x1200@60 Hz Khe mở rộng 1x PCIe x16 slot (From CPU)1x PCIe x1 slot (From PCH) Chuẩn lưu trữ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x 4/x2 SSD support4x SATA 6Gb/s ports Mạng Gigabit Ethernet Chip (1Gbps/100Mbps) Âm Thanh Realtek® Audio Codec2/4/5.1/7.1-Channel High Definition Audio Kết nối ngoài | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)1x PS/2 keyboard port1x PS/2 mouse port1x D-Sub port1x DVI-D port2x USB 3.2 Gen 1 ports4x USB 2.0/1.1 ports1x RJ-45 port3x audio jacks |
Kết nối trong | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x CPU fan header1x system fan header1x RGB LED strip header1x Front panel header1x Front panel audio connector 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module header1x Serial port header 1x Clear CMOS jumper
|
Kích thước | mATX Form Factor |

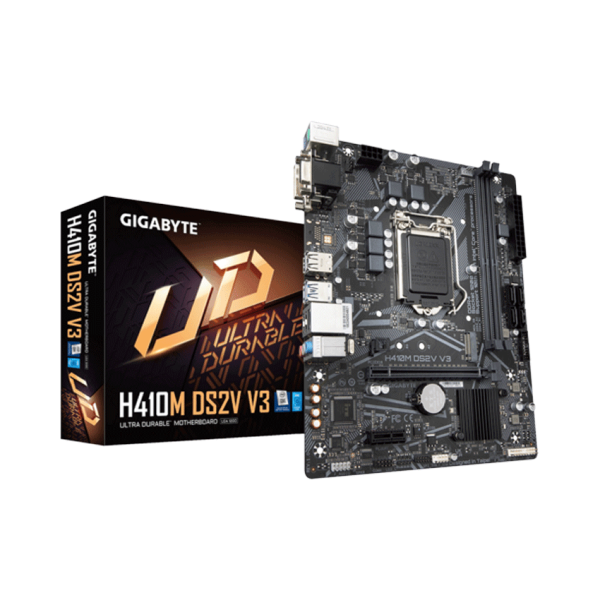

Đánh giá Mainboard Gigabyte H410M-DS2V V3 (Socket 1200 | m-ATX | 2 khe Ram DDR4)
